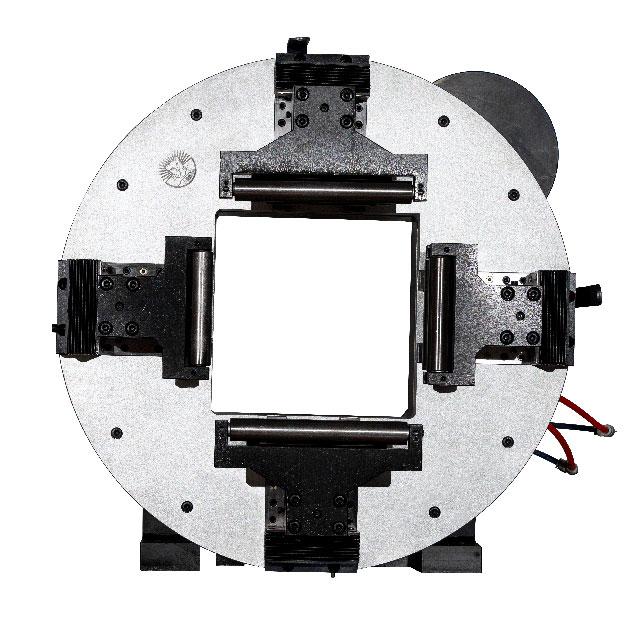

特 點
Characteristics
優質合金鋁板盤面
High quality alloy aluminum plate plate
全封閉結構
Fully enclosed structure
鋼帶滾輪式同步裝置
Steel Belt Roller synchronous device
交叉式雙滾軸
Cross type double rollers
優點:外觀大方,廢料不會進入盤體內部
Advantages: generous appearance, waste will not enter the internal disk
缺點:慣量大,不易維修(行業通?。?/span>
Disadvantages: large inertia, not easy to maintain (common fault of the industry)
主要參數 Main parameters

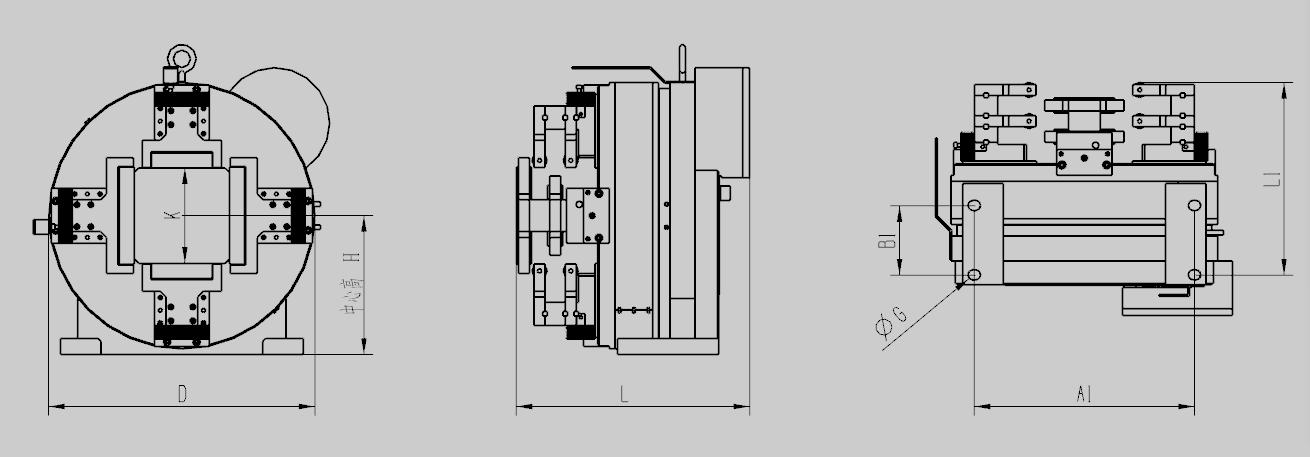

型號 Model number | 總質量Mass. | 旋轉 慣量 Inertia | 載重 能力 Load bearing | 氣壓范圍 Barometric pressure | 最高轉速 Maximum speed | 夾持范圍 Gripping range | A1 | B1 | D | K | G | H | L | L1 |
kg | Kg*M2 | KG | Mpa | r/min | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
YUK460-160 | 158 | 2.7 | 150 | 0.25-0.8 | 200 | 8-165 | 380 | 120 | 460 | 165 | 18 | 240 | 403 | 353 |
YUK620-240 | 268 | 9.2 | 220 | 0.25-0.8 | 150 | 8-242 | 380 | 120 | 620 | 245 | 18 | 315 | 418 | 368 |
YUK800-360 (半行程) | 502 | 31 | 520 | 0.25-0.8 | 120 | 8-182 182-3602 | 590 | 205 | 800 | 360 | 18 | 425 | 483 | 391 |
